Description
Dual wall adhesive-lined waterproof heat shrink tubing for insulating and bundling wires and cables whilst protecting from water and dust. Excellent electrical and physical properties. Ideal for application in wire harnesses, machinery and general manufacturing industries / Material: Polyolefin / Shrink Ratio: 3:1 / Lining: Adhesive Lining / Working Temperature: -55°C to +125°C / Shrink Temperature: 90°C / Diameter (Before Shrinking): 3,2 mm - 25,4 mm / Diameter (After Shrinking): 1 mm - 8,5 mm / Colour: Black / Reel Length: 1,2 m / Dielectric Voltage Withstand: 2500V, 60 Seconds, No Breakdown / Flammability: VW-1 / RoHS Compliant / Zero Halogen
Recommended Sizes
Please see below for our recommended bundle / cable diameter sizes for each size of heat shrink.

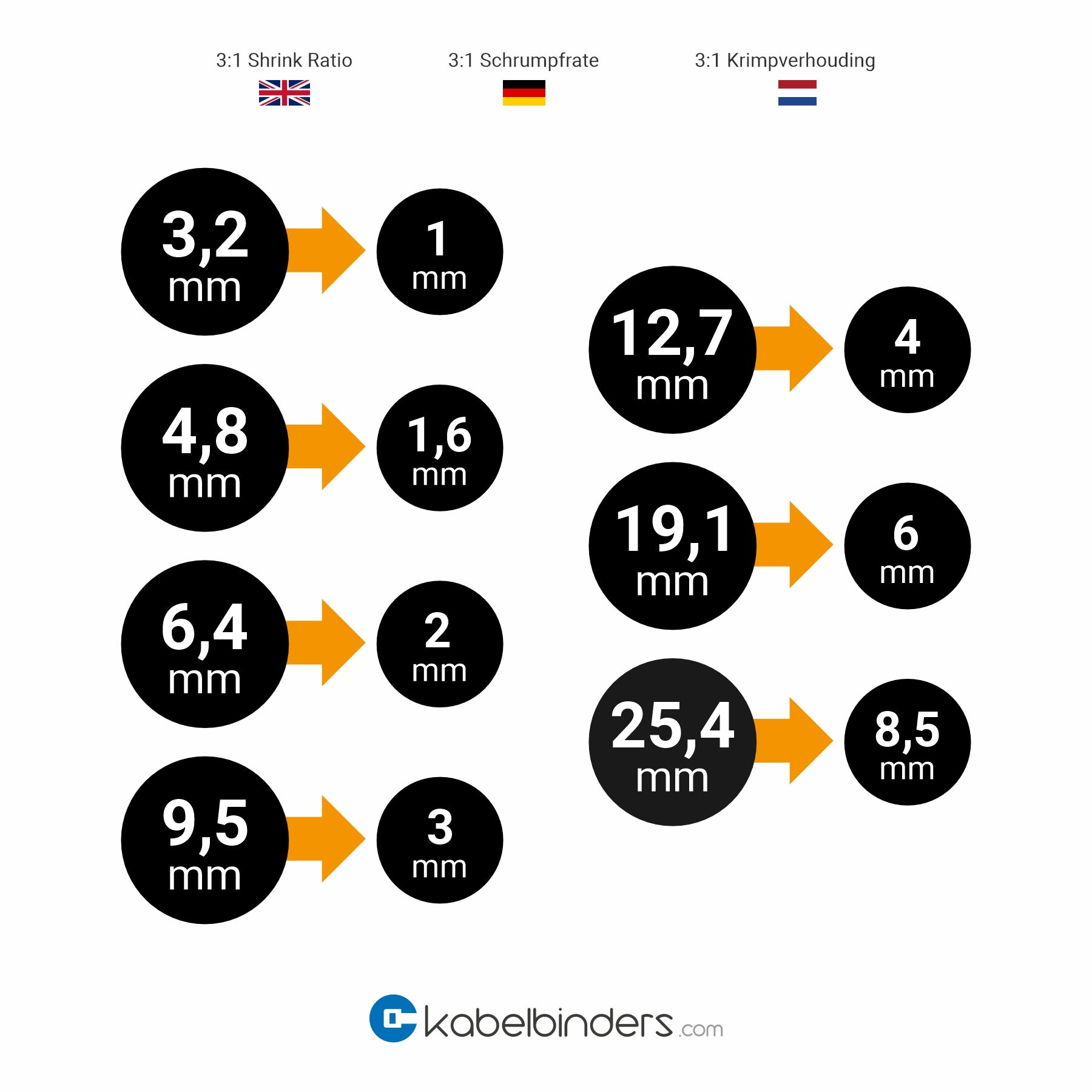

| Diameter (Before Shrinking) | Diameter (After Shrinking) | Recommended Bundle Size (Diameter) |
|---|---|---|
| 3,2 mm | 1 mm | 1,2 mm - 2,6 mm |
| 4,8 mm | 1,6 mm | 1,9 mm - 3,8 mm |
| 6,4 mm | 2 mm | 2,4 mm - 5,1 mm |
| 9,5 mm | 3 mm | 3,6 mm - 7,6 mm |
| 12,7 mm | 4 mm | 4,8 mm - 10,2 mm |
| 19,1 mm | 6 mm | 7,2 mm - 15 mm |
| 25,4 mm | 8,5 mm | 10,2 mm - 20,3 mm |
